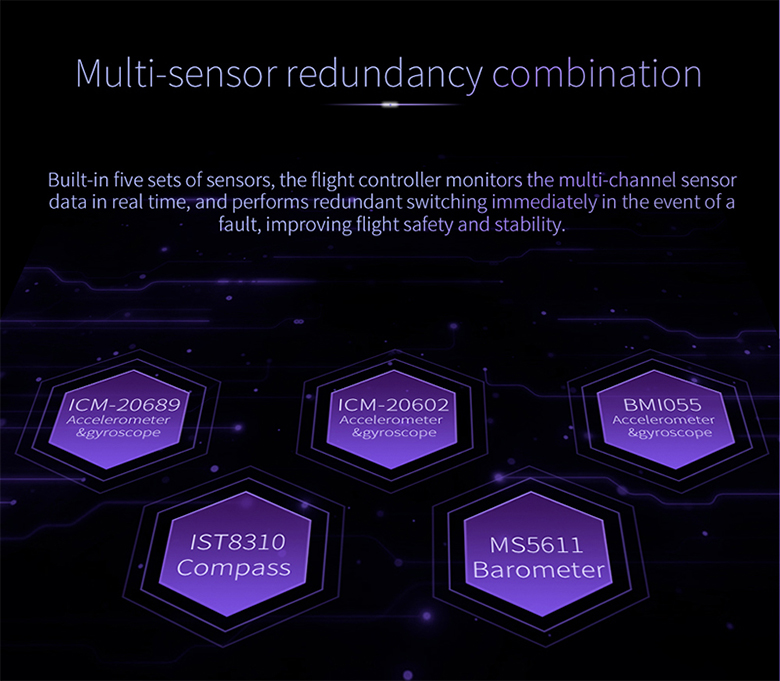

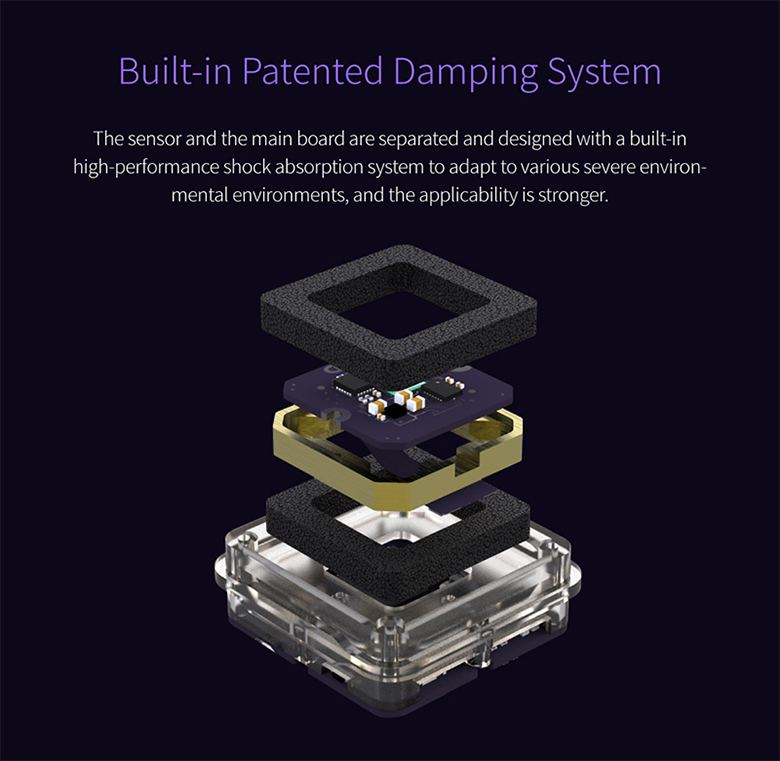

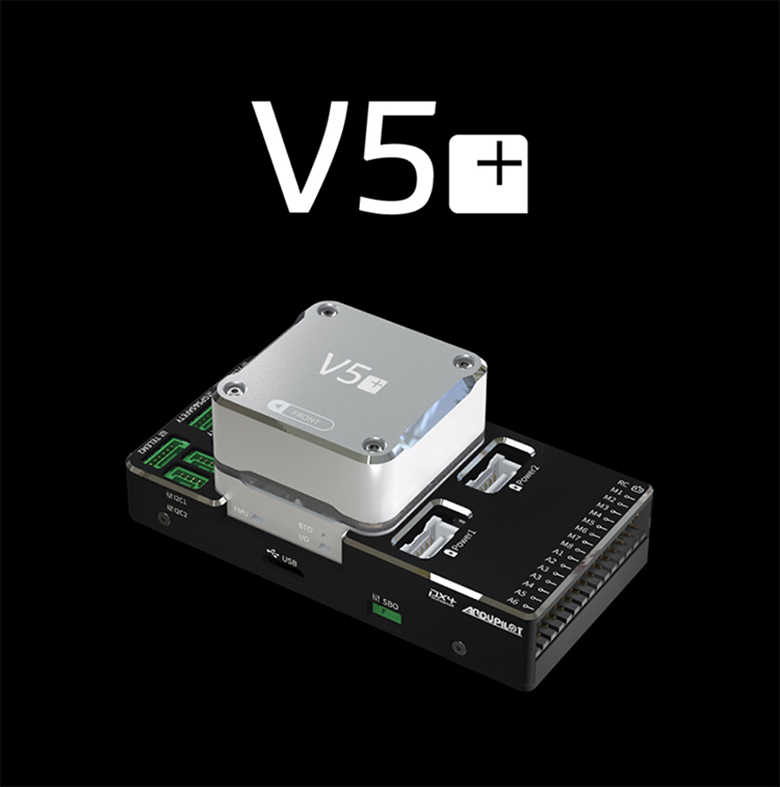

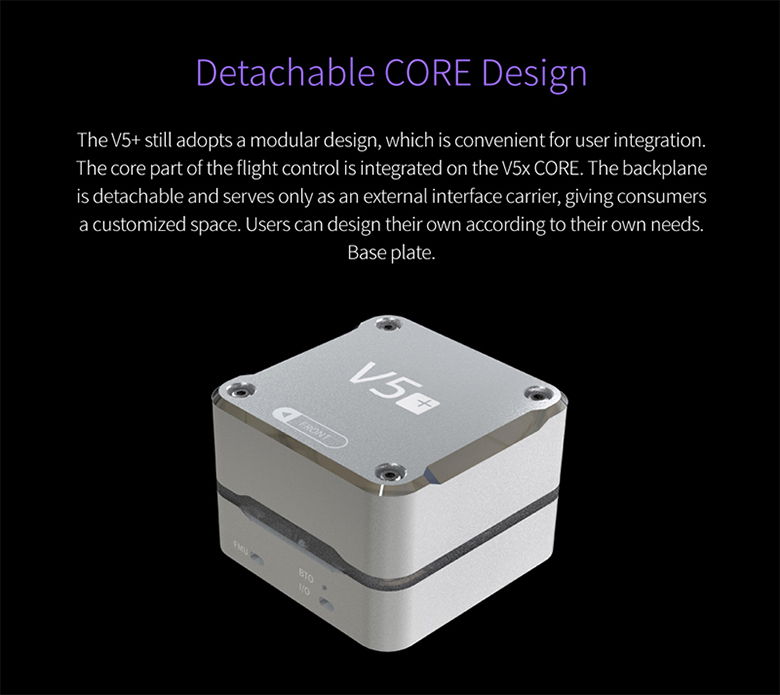

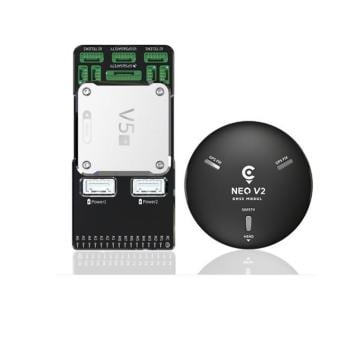

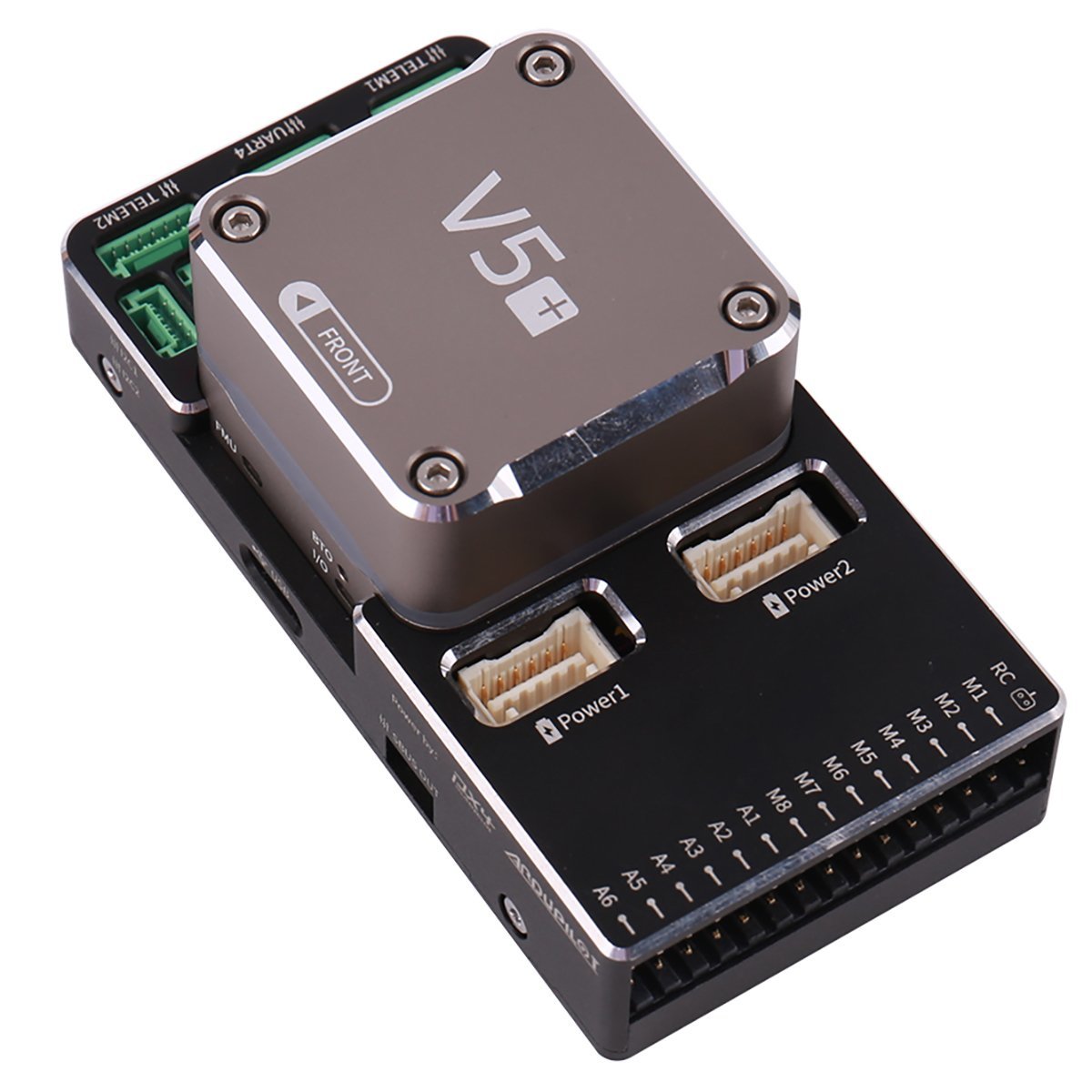

CUAV V5+ with NEO V2 Pro GNSS is an advanced flight controller set designed and made by CUAV. V5+ is built with five sets of sensors, including triple-redundant IMU, a compass and a barometer. The flight controller monitors real time data that’s transferred from each sensor. In the event of a failure, the redundant sensor acts as a "backup plan” in a instant to ensure flight safety. The board of v5+ is based on FMUv5 open hardware design, the external interface uses Dronecode standard pinouts, and modular design that allows users to design its backplane. It is fully compatible with PX4 and ArduPilot firmware.

Based on UAVCAN communication protocol, CUAV NEO V2 Pro is a GNSS positioning system that integrates industrial-grade compass, barometer, flight controller status light, buzzer, and safety switch in one, featuring high anti-interference capability equipped with industrial grade RM3100 sensor. The built-in high precision barometer adapts to different application scenarios. NEO V2 Pro adopts dual filtering design, effectively filtering out the interference singal from remote controllers, digital transmission, and 4G signals on GPS positioning reception.

CUAV V5+ Specifications:

Overview

- Weight: 91g

- Dimensions: 42x85.5x33mm

- Operating temperature: -20 ~ 80°C

Processor

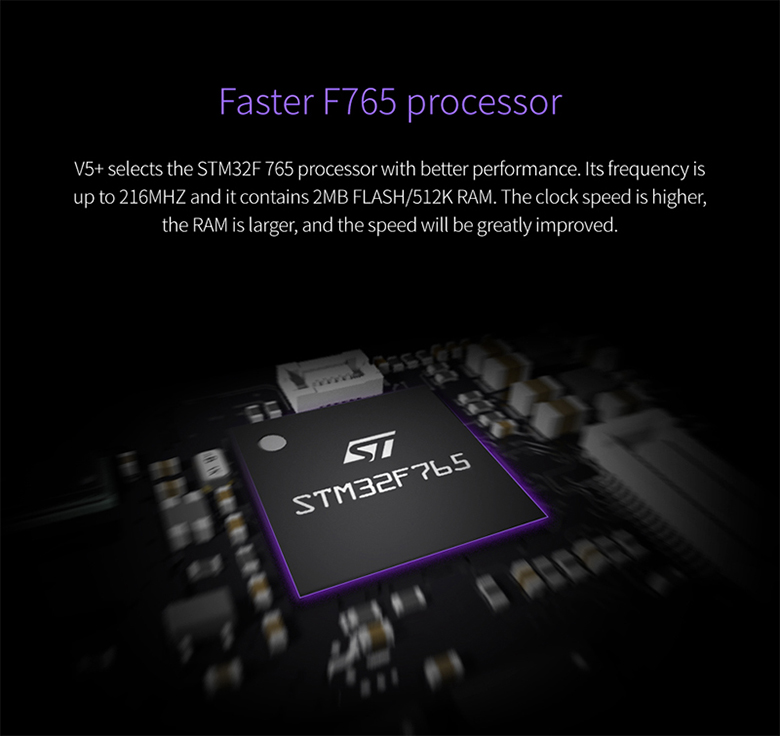

-STM32F765 (32-bit ARM Cortex M7,216 Mhz/512 KB RAM/2 MB Flash,512KB RAM)

-STM32F100 (32-bit ARM Cortex-M3, 24MHz, 8KB SRAM)

Sensors

-Accelerometer: ICM-20602/ICM20689/BMI055

-Gyroscope: ICM-20602/ICM20689/BMI055

-Barometer: MS5611

-Magnetometer: IST8310

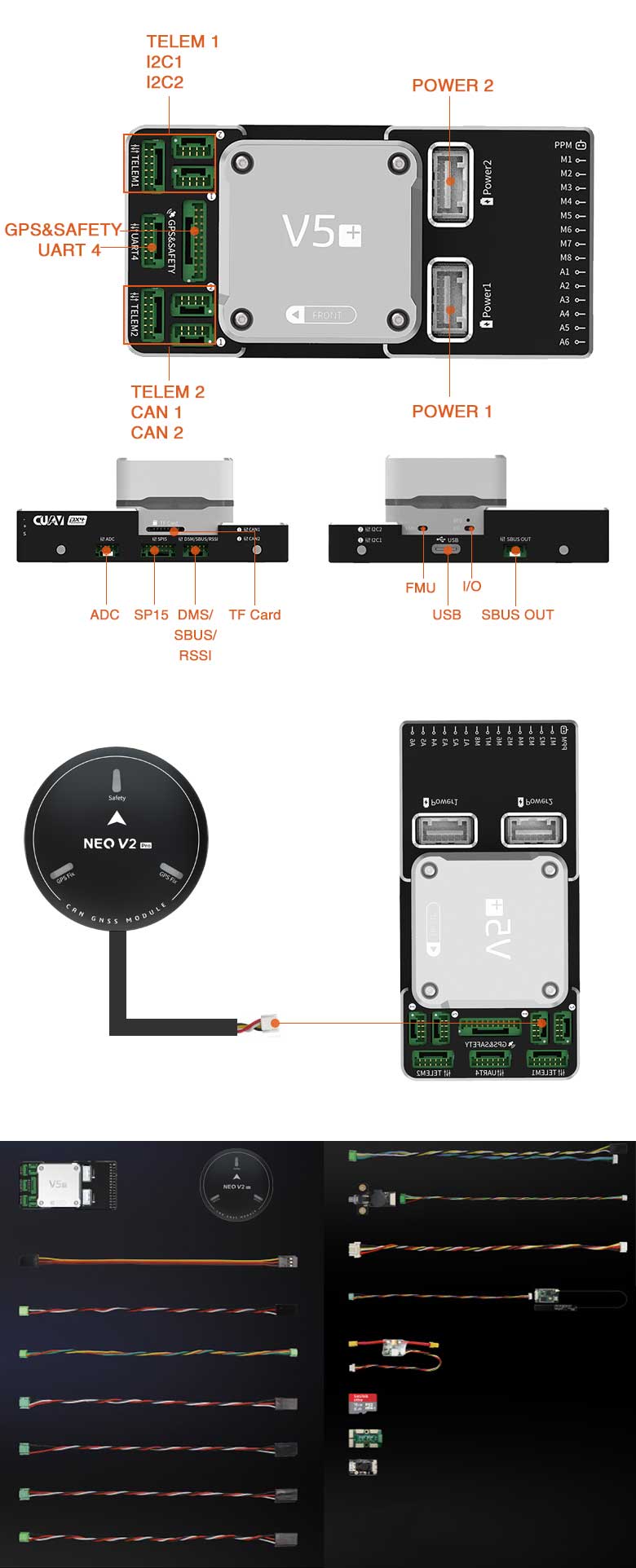

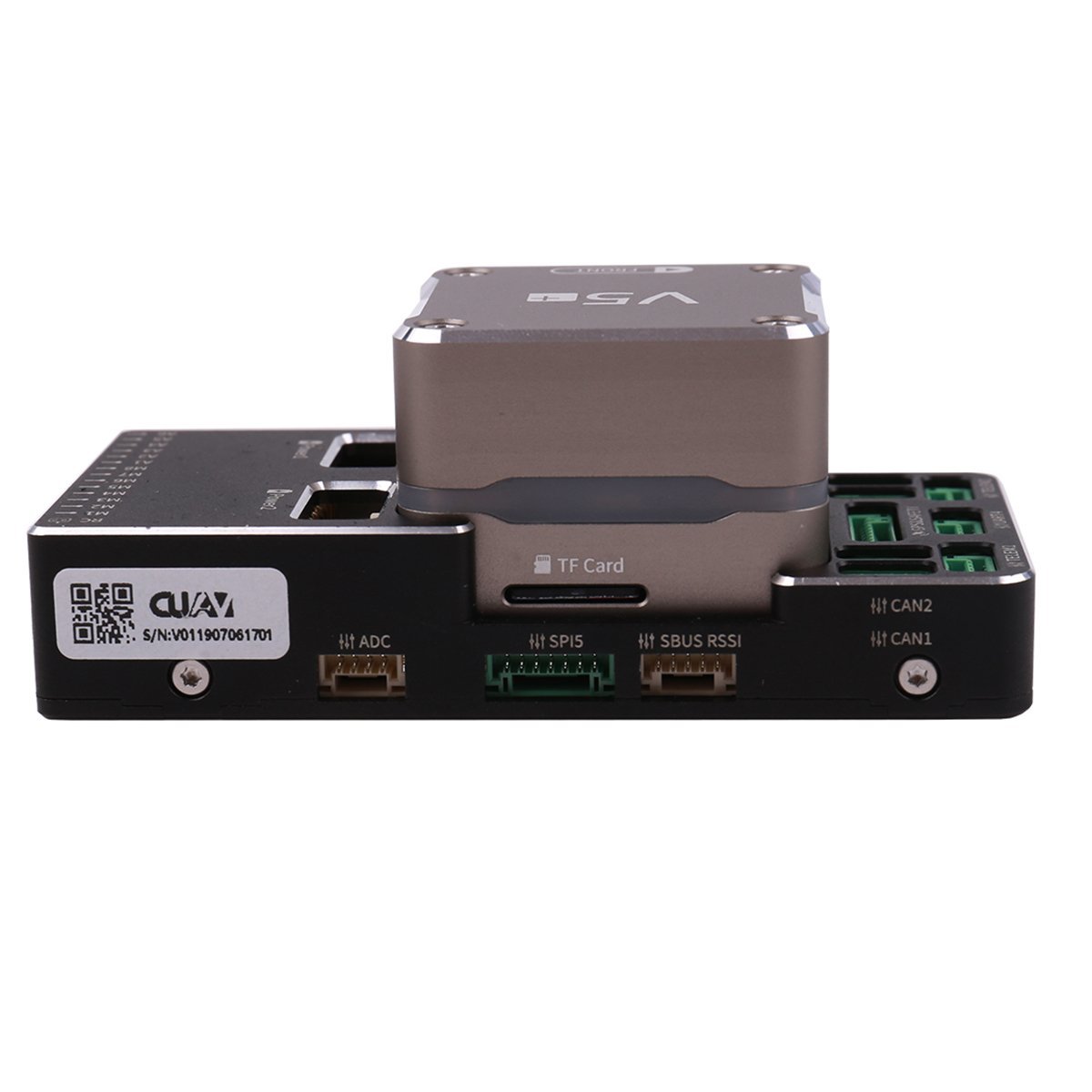

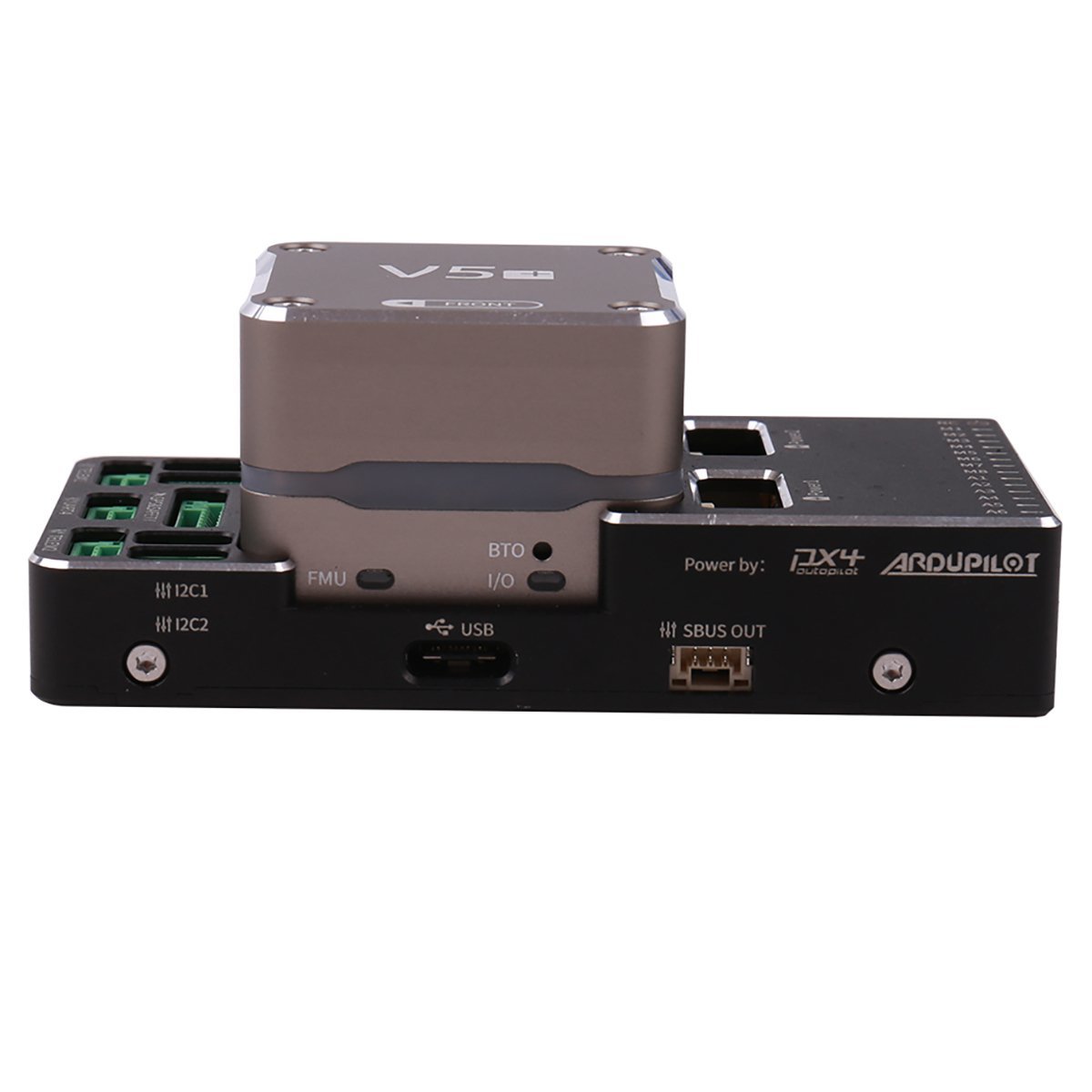

Interfaces

-8-14 PWM outputs (6 from IO, 8 from FMU)

-3 dedicated PWM/Capture inputs on FMU

-Dedicated R/C input for CPPM

-Dedicated R/C input for PPM and S.Bus

-analog / PWM RSSI input

-S.Bus servo output

-5 general purpose serial ports

-4 I2C ports

-4 SPI buses

-2 CANBuses with serial ESC

-Analog inputs for voltage / current of 2 batteries

Power

-Operating power: 4.3~5.4V

-USB Input: 4.75~5.25V

-Servo Rail input: 0-36V

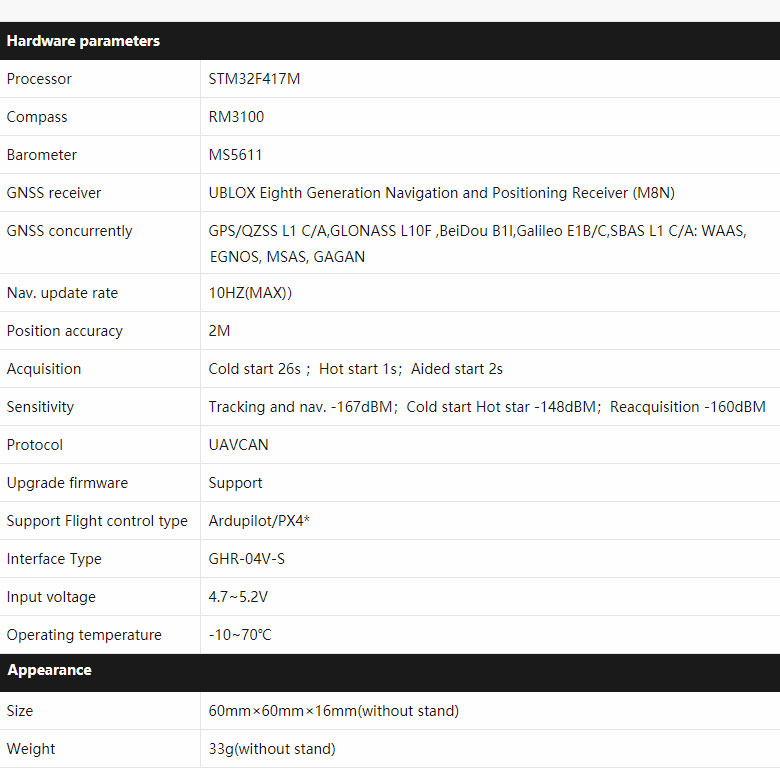

NEO V2 Pro Specifications:

Size: 60x60x16mm(without stand)

Weight: 33g(without stand)

Hardware parameters

Processor: STM32F417M

Compass: RM3100

Barometer: MS5611

GNSS receiver: UBLOX M8N

Concurrently: GPS/QZSS L1 C/A,

            Glonass L10F,

            BeiDou B1I,

            Galileo E1B/C,

            SBAS L1 C/A:

            WAAS, EGNOS, MSAS, GAGAN

Navigation update rate: 10HZ (Max)

Position accuracy: 2M

Acquisition: Cold start 26S

           Hot start 1S

           Aided start 2S

Sensitivity: Tracking and nav.-167dBM

          Cold start, Hot start -148dBM

          Reacquisition-160dBM

Communication protocol: UAVCAN

Firmware upgrade: Support

Flight controller support: Ardupilot/PX4*

Interface Type: GHR-04V-S

Input voltage: 4.7~5.2V

Operating temperature: -10~70℃

Your Purchase Includes:

V5+:

1x V5+ Flight Controller

2x Dupont Cable

1x ADC6.6 Cable

2x I2C/CAN Cable

1x SBUS Signal Cable

1x RSSI Cable

1x DSM Signal Cable

1x ADC3.3 Cable

1x Debug Cable

1x Safety Switch with cable

1x Voltage-Current Cable

1x PW-link Module with cable

1x Power Module

1x 16GB Memory Card

1x I2C Expansion Board

1x TTL Small Board

NEO V2 Pro:

1x NEO V2 Pro Module

1x GPS Stand

1x CAN Connect cable
